Product Summary

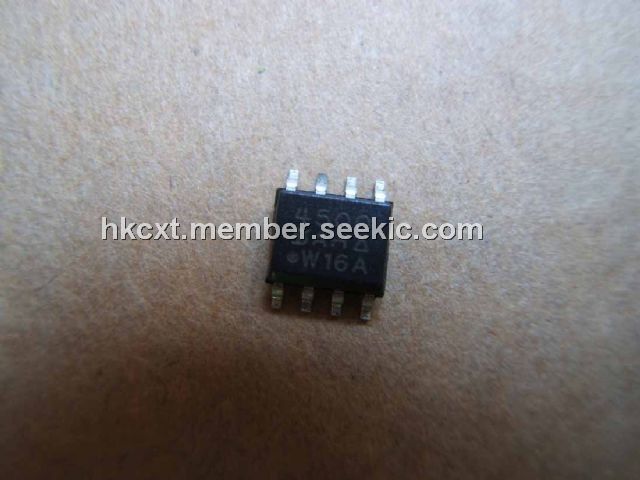

The SI4500DY is a MOSFET Half-Bridge.
Parametrics
Absolute maximum ratings: (1)Drain-Source Voltage:N-channel:20V, P-channel:-20V; (2)Gate-Source Voltage:±12V; (3)Pulsed Drain Current:N-channel:±30A, P-channel:±20A; (4)continuous source current:N-channel:1.7V, P-channel:-1.7V; (5)Operating Junction and Storage Temperature Range:-55℃ to 150℃.
Features
Features: (1)N-channel:VDS:20V, rDS(on)=0.030 @ V = 4.5 V, ID=±7.0A, rDS(on)=0.040 @ VGS = 2.5 V, ID=±6.0A; (2)P-channel:VDS:-20V, rDS(on)=0.065 @ V = -4.5 V, ID=±4.5A, rDS(on)=0.100 @ VGS = -2.5 V, ID=±3.5A.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
SI4500DY |
Vishay/Siliconix |
MOSFET 20V 7/4.5A 2.5W |
Data Sheet |
Negotiable |
|
|||||
