Product Summary
The LH28F016SCT-L95 is a high-performance 16-Mbit SmartVoltage Flash memory organized as 2Mbyte of 8 bits. The 2Mbyte of data is arranged in thirty -two 64-Kbyte blocks which are individually erasable, lockable, and unlockable in-system. The LH28F016SCT-L95 maintains backwards-compatibility with sharp’s 28F008SA.
Parametrics
LH28F016SCT-L95 absolute maximum ratings: (1)Operating Temperature: 0℃ to 70℃; (2)Storage Temperature: -65℃ to +125℃; (3)Voltage On Any Pin: -2.0V to +7.0V; (4)VCC Suply Voltage: -2.0V to +7.0V; (5)VPP Update Voltage during Block Erase, Byte Write and Lock-Bit Configuration: -2.0V to +14.0V; (6)Output Short Circuit Current: 100mA.
Features
LH28F016SCT-L95 features: (1)SmartVoltage Technology: 2.7V (Read Only), 3.3V or 5V VCC, 3.3V, 5V or 12V VPP; (2)High-performance Read Access Time; (3)Operating Temperature: 0℃ to 70℃; (4)High-Density Symmetrically-Blocked Architecture; (5) Extended Cycling Capability; (6) Industry-Standard Packaging: 40-Lead TSOP; (7) Low Power Management; (8) SRAM-Compatible Write Interface; (9) CMOS Process.

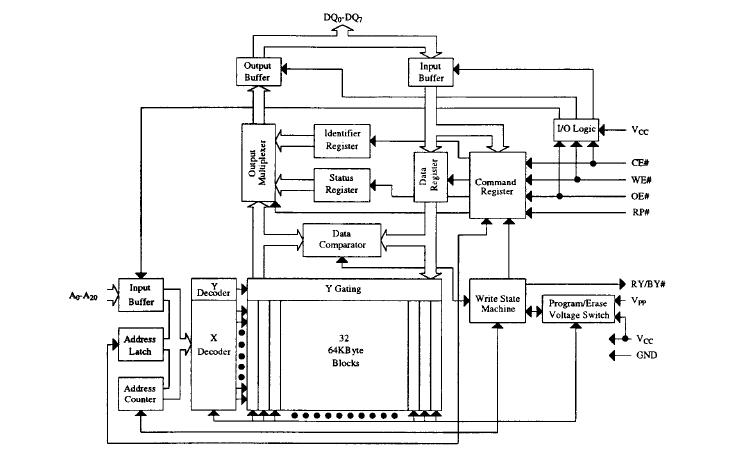

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LH28F016SCT-L95 |
|

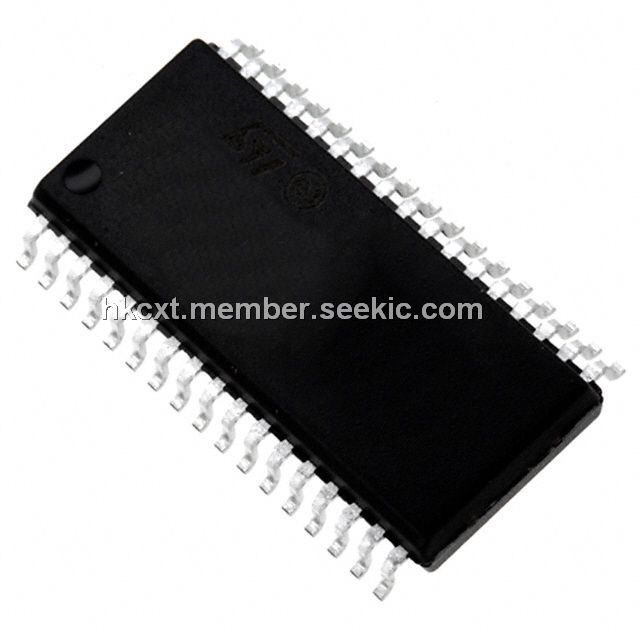

IC FLASH 16MBIT 95NS 40TSOP |
Data Sheet |
Negotiable |
|
||||
