Product Summary

The CY2292SL-1H6T is a Three-PLL General-Purpose EPROM Programmable Clock Generator.

Parametrics

Absolute maximum ratings: (1)Supply Voltage: –0.5V to +7.0V; (2)DC Input Voltage: –0.5V to +7.0V; (3)Storage Temperature: –65℃ to +150℃; (4)Max. Soldering Temperature (10 sec): 260℃; (5)Junction Temperature: 150℃; (6)Package Power Dissipation: 750 mW; (7)Static Discharge Voltage: ≤ 2000V.

Features

Features: (1)Three integrated phase-locked loops; (2)EPROM programmability; (3)Factory-programmable (CY2292) or field-program mable (CY2292F) device options; (4)Low-skew, low-jitter, high-accuracy outputs; (5)Power-management options (Shutdown, OE, Suspend); (6)Frequency select option; (7)Smooth slewing on CPUCLK; (8)Configurable 3.3V or 5V operation; (9)16-pin SOIC Package (TSSOP: F only)s.

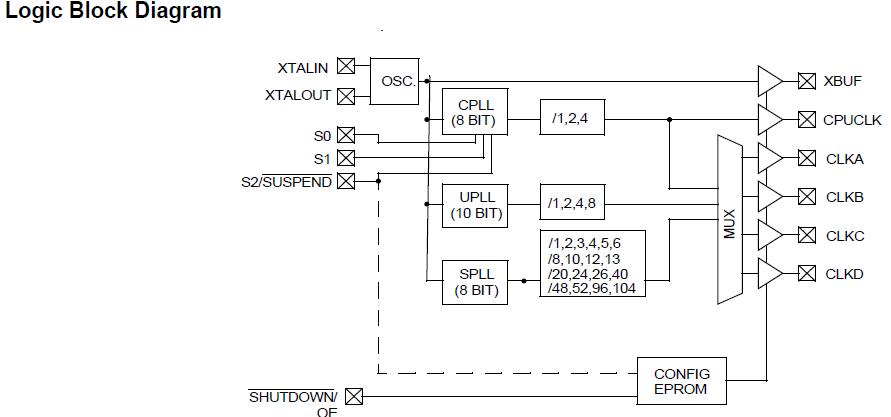

Diagrams
