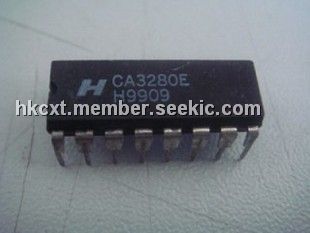

CA3280E

CA3280E, operational Tranconductance amplifier, DIP16, 36V, 10mA, 100μA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.23~4.52 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.23~4.52

PartNumber:: CA3280E

Brand:: Intersil Corporation - Intersil | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tina's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-16

From Other Seller

Part Number:CA3280E
US $3.23 - 4.52
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

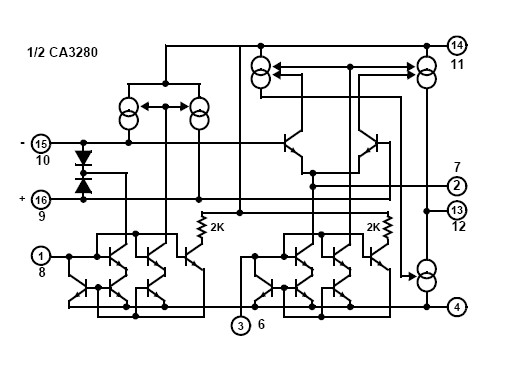

The CA3280E is an operational Tranconductance amplifier. The CA3280E consists of two variable operational amplifiers that are designed to substantially reduce the initial input offset voltage and the offset voltage variation with respect to changes in programming current. This design results in reduced “AGC thump,” an objectionable characteristic of many AGC systems. Interdigitation, or crosscoupling, of critical portions of the circuit reduces the amplifier dependence upon thermal and processing variables. The applications of the CA3280E include Voltage Controlled Amplifiers, Voltage Controlled Oscillators, Multipliers, Demodulators, Sample and Hold, Instrumentation Amplifiers, Function Generators, Triangle Wave-to-Sine Wave Converters, Comparators, Audio Preamplifier.

Parametrics

CA3280E absolute maximum ratings: (1)Supply Voltage (Between V+ and V-): +36V; (2)Differential Input Voltage: 5V; (3)Input Voltage Range: V+ to VInput; (4)Current at ID = 0: 100μA; (5)Amplifier Bias Current (IABC): 10mA; (6)Output Short Circuit Duration: Indefinite; (7)Linearizing Diode Bias Current, ID: 5mA; (8)Peak Input Current with Linearizing Diode: ±ID.

Features

CA3280E features: (1)Low Initial Input Offset Voltage: 500μV (Max) (CA3280A); (2)Low Offset Voltage Change vs IABC:＜500μV (Typ) for All Types; (3)Low Offset Voltage Drift: 5μV/℃ (Max) (CA3280A); (4)Excellent matching of the Two Amplifiers for All Characteristics; (5) Internal Current-Driven Linearizing Diodes Reduce the External Input Current to an Offset Component; (6) Flexible Supply Voltage Range: ±2V to ±5V.
