Product Summary

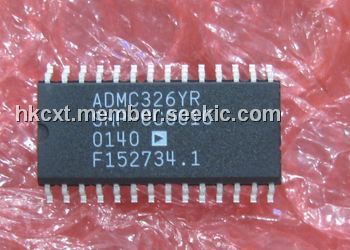

The ADMC326YR is a 28-Lead ROM-Based DSP Motor Controller. It is suitable for Washing Machines, Refrigerator Compressors, Fans, Pumps, Industrial Variable Speed Drives, Automotive.
Parametrics
ADMC326YR absolute maximum ratings: (1)Supply Voltage (VDD): –0.3 V to +7.0 V; (2)Input Voltage: –0.3 V to VDD + 0.3 V; (3)Output Voltage Swing: –0.3 V to VDD + 0.3 V; (4)Operating Temperature Range (Ambient): –40 to +105℃; (5)Storage Temperature Range: –65 to +150℃; (6)Lead Temperature (5 sec): 280℃.
Features
ADMC326YR features: (1)16-Bit Watchdog Timer; (2)Programmable 16-Bit Internal Timer with Prescaler; (3)Double Buffered Synchronous Serial Port; (4)Hardware Support for UART Emulation; (5)Integrated Power-On Reset Function; (6)28-Lead SOIC or PDIP Package Options; (7)20 MIPS Fixed-Point DSP Core; (8)Three-Phase 16-Bit PWM Generator.
Diagrams
 |
