Product Summary

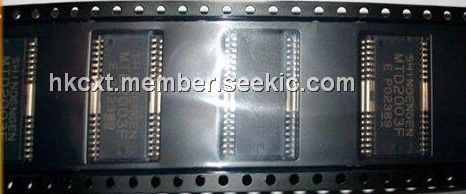

The MTD2003F is a Stepping Motor Driver.
Parametrics
MTD2003F absolute maximum ratings: (1)Output Voltage VCEO(SUS): 30V; (2)Output Current IO: 1.2A; (3)Logic Supply Voltage VCC: 0V to 6V; (4)Logic Input Voltage VIN: 0 to VCC V; (5)Total Power Dissipation PT: 3W; (6)Junction Temperature Tj: 150℃; (7)Storage Temperature Tstg: -40℃ to 150℃.
Features
MTD2003F features: (1)Constant-current chopping function (Frequency fixed, separate-oscillation); (2)4-phase input (with inhibit for simultaneously turn ON); (3)Current levels can be selected in 2 bit digital signal; (4)A noise cancel function is provided (No externally attached filter needed); (5)Protection for penetration current; (6)Built-in overheating protection; (7)Built-in flywheel diodes.

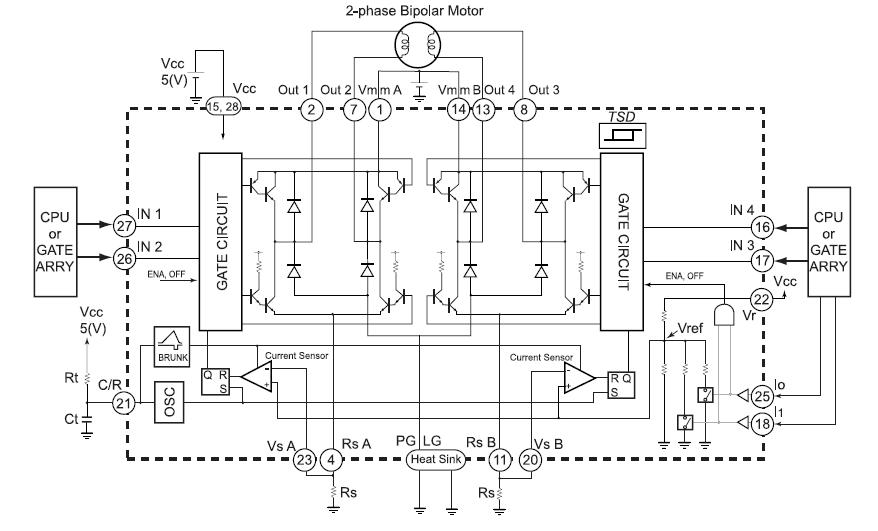

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MTD2003F |
Shindengen |
Motor / Motion / Ignition Controllers & Drivers Power IC |
Data Sheet |
Negotiable |
|
||||||||
|
MTD2003F-3072 |
Shindengen |
Motor / Motion / Ignition Controllers & Drivers VCEO=30 IO=1.2 PT=3 |
Data Sheet |
|
|
||||||||
|
MTD2003F-3102 |
Shindengen |
Motor / Motion / Ignition Controllers & Drivers VCEO=30 IO=1.2 PT=3 |
Data Sheet |
|
|
||||||||
|
MTD2003F-4072 |
Shindengen |
Other Power Management VCEO=30 IO=1.2 PT=3 |
Data Sheet |
Negotiable |
|
||||||||
|
MTD2003F-4102 |
Shindengen |
Other Power Management VCEO=30 IO=1.2 PT=3 |
Data Sheet |
Negotiable |
|
||||||||
