TDA5200

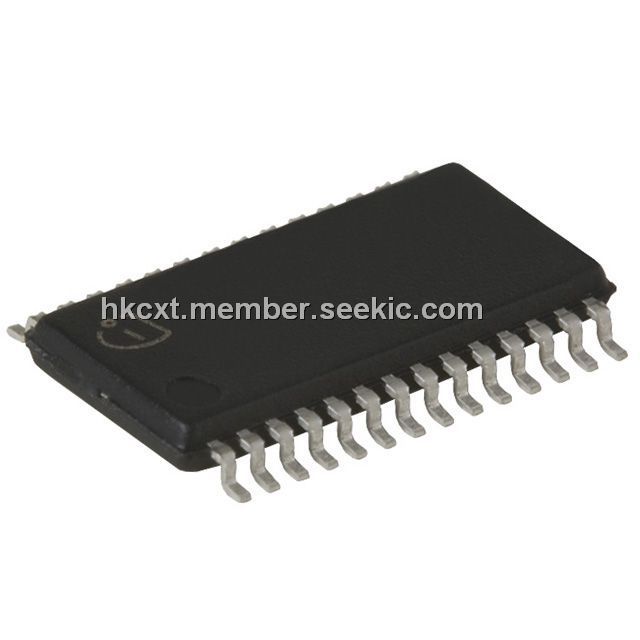

TDA5200, low power consumption single chip, TSOP28, -0.3V to 5.5V, 114K/W, 5V ±10%

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.68~1.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.68~1.20

PartNumber:: TDA5200

Brand:: Infineon Technologies AG - Infineon | Pack: TSOP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tina's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-23

From Other Seller

Part Number:TDA5200
US $0.68 - 1.20
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

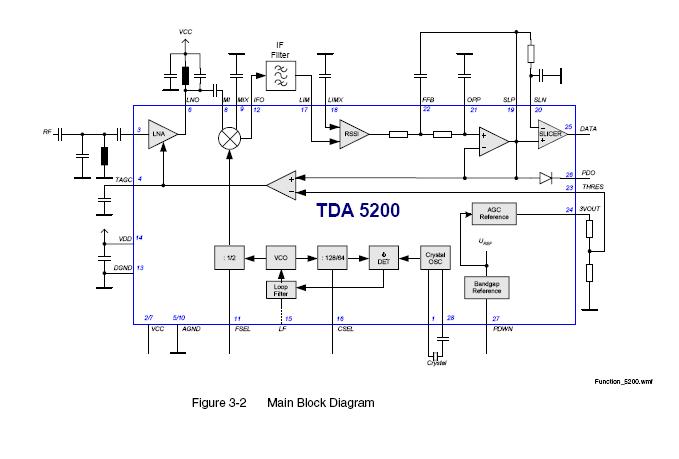

The TDA5200 is a very low power consumption single chip asks Single Conversion Receiver for the frequency bands 868-870 MHz and 433-435 MHz. The TDA5200 offers a high level of integration and needs only a few external components. The TDA5200 contains a low noise amplifier (LNA), a double balanced mixer, a fully integrated VCO, a PLL synthesiser, a crystal oscillator, a limiter with RSSI generator, a data filter, a data comparator (slicer) and a peak detector. Additionally there is a power down feature to save battery life. The applications of the TDA5200 include Keyless Entry Systems, Remote Control Systems, Alarm Systems, and Low Bitrate Communication Systems.

Parametrics

TDA5200 absolute maximum ratings: (1)Supply Voltage Vs: -0.3V to 5.5V; (2)Junction Temperature Tj: -40℃ to +150℃; (3)Storage Temperature Ts: -40℃ to +125℃; (4)Thermal Resistance RthJA: 114K/W; (5)ESD integrity, all pins VESD: -1kV to +1kV.

Features

TDA5200 features: (1)Low supply current (Is = 4.8mA typ. at 868MHz, 4.6mA typ. at 434MHz); (2)Supply voltage range 5V ±10%; (3)Power down mode with very low supply current (100nA max.); (4)Fully integrated VCO and PLL Synthesiser; (5)RF input sensitivity ＜–107dBm; (6)Selectable frequency ranges 868-870 MHz and 433-435 MHz; (7)Selectable reference frequency; (8)Limiter with RSSI generation, operating at 10.7MHz; (9)2nd order low pass data filter with external capacitors; (10)Data slicer with self-adjusting threshold.
