Product Summary
The CS8415A-CSZ is a 96 kHz Digital Audio Interface Receiver. It is a monolithic CMOS device which receives and decodes one of 7 channels of audio data according to the IEC60958, S/PDIF, EIAJ CP1201, or AES3. The CS8415A-CSZ has a serial digital audio output port and comprehensive control ability through a 4-wire microcontroller port. Channel status and user data are assembled in block-sized buffers, making read access easy.
Parametrics
CS8415A-CSZ absolute maximum ratings: (1)Power Supply Voltage VL+,VA+: 6.0V; (2)Input Current, Any Pin Except Supplies (Note 2) Iin: ±10mA; (3)Input Voltage Vin: -0.3V to (VL+)+0.3V; (4)Ambient Operating Temperature (power applied) TA: -55℃ to 125℃; (5)Storage Temperature Tstg: -65℃ to 150℃.
Features
CS8415A-CSZ features: (1)Complete EIAJ CP1201, IEC-60958, AES3, S/PDIF-compatible Receiver; (2)+5.0 V Analog Supply (VA+); (3)+3.3 V or +5.0 V Digital Interface (VL+); (4)7:1 S/PDIF Input MUX; (5)Flexible 3-wire Serial Digital Output Port; (6)8-kHz to 96-kHz Sample Frequency Range; (7)Low-jitter Clock Recovery; (8)Pin and Microcontroller Read Access to Channel Status and User Data; (9)Microcontroller and Standalone Modes; (10)Differential Cable Receiver; (11)On-chip Channel Status and User Data Buffer Memories; (12)Auto-detection of Compressed Audio Input Streams; (13)Decodes CD Q Sub-Code; (14)OMCK System Clock Mode.

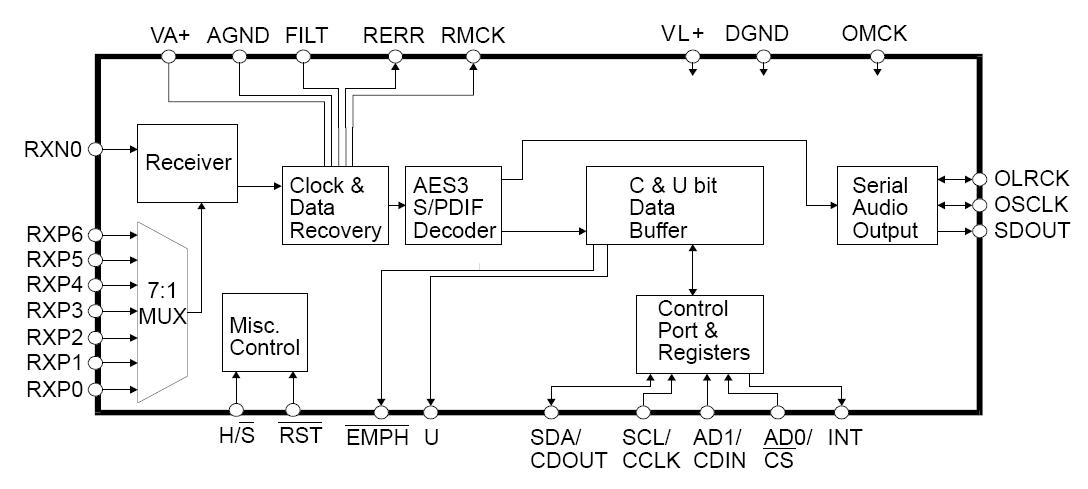

Diagrams
