XC9572-10PC84C

XC9572-10PC84C, high-performance CPLD, PLCC84, -0.5V to +7.0V, 7.5ns, 125MHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.50

PartNumber:: XC9572-10PC84C

Brand:: Xilinx, Inc - Xilinx | Pack: PLCC | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tina's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-23

From Other Seller

Part Number:XC9572-10PC84C
US $1.00 - 1.50
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

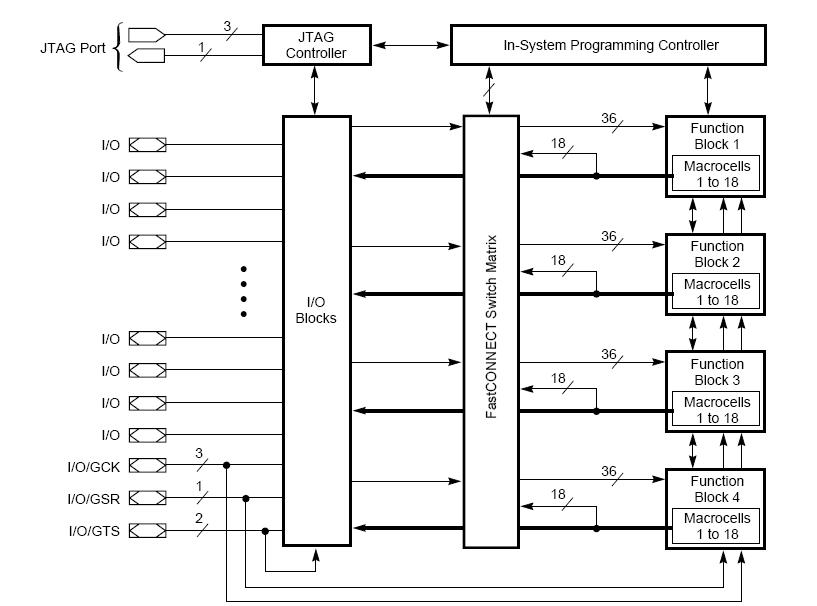

The XC9572-10PC84C is a high-performance CPLD providing advanced in-system programming and test capabilities for general purpose logic integration. The XC9572-10PC84C is comprised of four 36V18 Function Blocks, providing 1,600 usable gates with propagation delays of 7.5 ns.

Parametrics

XC9572-10PC84C absolute maximum ratings: (1)VCC Supply voltage relative to GND: -0.5V to 7.0V; (2)VIN DC input voltage relative to GND: -0.5V to VCC + 0.5V; (3)VTS Voltage applied to 3-state output with respect to GND: -0.5V to VCC + 0.5V; (4)TSTG Storage temperature: -65℃ to +150℃; (5)TSOL Max soldering temperature (10 s @ 1/16 in = 1.5 mm): +260℃.

Features

XC9572-10PC84C features: (1)7.5 ns pin-to-pin logic delays on all pins; (2)fCNT to 125 MHz; (3)72 macrocells with 1,600 usable gates; (4)Up to 72 user I/O pins; (5)5V in-system programmable (ISP); (6)Enhanced pin-locking architecture; (7)Flexible 36V18 Function Block; (8)Extensive IEEE Std 1149.1 boundary-scan (JTAG) support; (9)Programmable power reduction mode in each macrocell; (10)Slew rate control on individual outputs; (11)User programmable ground pin capability; (12)Extended pattern security features for design protection; (13)High-drive 24mA outputs; (14)3.3V or 5V I/O capability; (15)Advanced CMOS 5V FastFLASH technology; (16)Supports parallel programming of more than one XC9500 concurrently; (17)Available in 44-pin PLCC, 84-pin PLCC, 100-pin PQFP and 100-pin TQFP packages.
